Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD

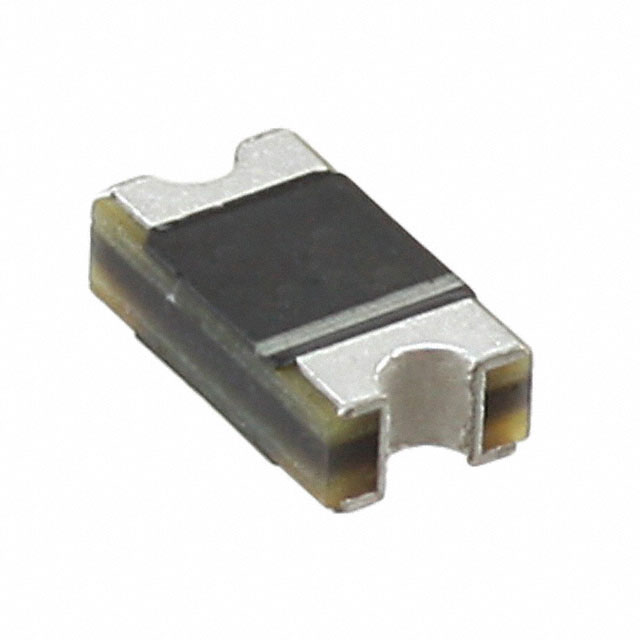

Supplier Device Package : 1206/SOD-123
Operating Temperature - Junction : -65°C ~ 175°C
0
11546 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 3.3V
Tolerance : ±5%
Power - Max : 1W
Impedance (Max) (Zzt) : 10 Ohms
Current - Reverse Leakage @ Vr : 100µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount

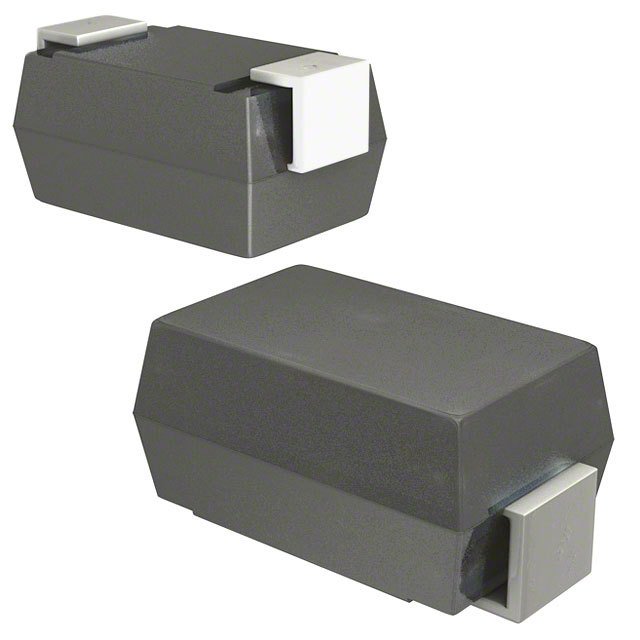

Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 5.1V
Tolerance : ±5%
Power - Max : 1W
Impedance (Max) (Zzt) : 7 Ohms
Current - Reverse Leakage @ Vr : 10µA @ 1V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 12V
Tolerance : ±5%
Power - Max : 1W
Impedance (Max) (Zzt) : 9 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 9.1V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount

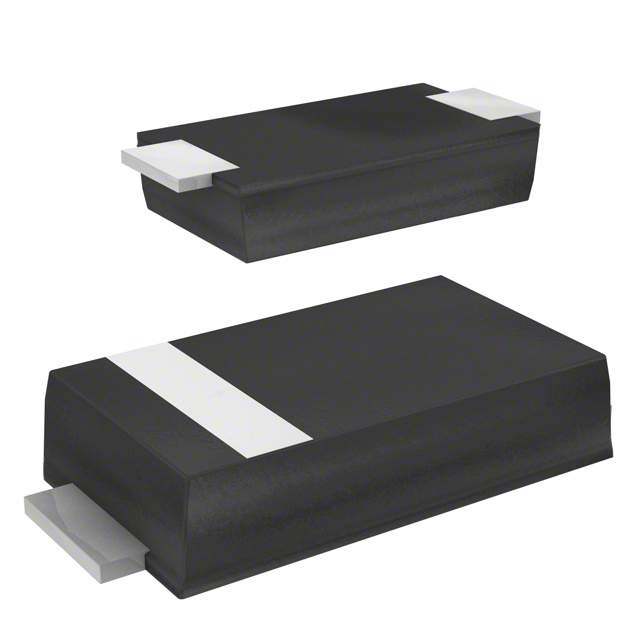

Package / Case : DO-214AC, SMA Flat Leads
Supplier Device Package : DO-214AC (SMA)
0
1298 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 24V
Tolerance : ±5%
Power - Max : 1W
Impedance (Max) (Zzt) : 25 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 18.2V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA Flat Leads
Supplier Device Package : DO-214AC (SMA)
0
1425 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 27V
Tolerance : ±5%
Power - Max : 1W
Impedance (Max) (Zzt) : 35 Ohms
Current - Reverse Leakage @ Vr : 5µA @ 20.6V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 200mA
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA Flat Leads
Supplier Device Package : DO-214AC (SMA)
0
2046 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 6.2V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 1 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 3V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount

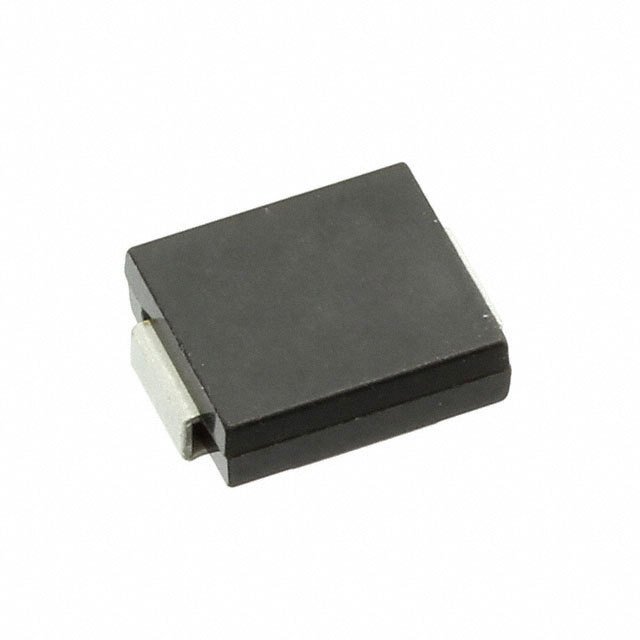

Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 12V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 2.5 Ohms
Current - Reverse Leakage @ Vr : 2µA @ 9.1V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2642 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 24V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 3.5 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 18.2V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
1960 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 27V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 5 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 20.6V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
2730 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 36V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 11 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 27.4V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2720 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 39V
Tolerance : ±5%
Power - Max : 5W
Impedance (Max) (Zzt) : 14 Ohms
Current - Reverse Leakage @ Vr : 500nA @ 29.7V
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
100 in stock
