Comair Rotron
Since its beginning in 1947, Comair Rotron has been the leading supplier of standard and value-added fans and blowers for a broad range of markets including electronics, computers, telecommunications and HVAC. In December of 2014, Ammon & Rizos a manufacturers rep company purchased Comair Rotron from Gentherm. Ammon & Rizos has represented Comair since 1954 and has offices in the US, Mexico and Brazil. Our Comair Rotron Shanghai operation is a state of the art fan and blower manufacturing facility.
Comair Rotron Shanghai is currently producing a wide range of DC fans and blowers with a standard range of 5 to 48 volts DC and 115 or 230 volts AC, supplying 5 to 1070+ cfm and sizes from 40 mm to 281 mm.
Comair Rotron has developed many new Air Moving solutions and is always open to new challenges and opportunities.
Part Number
Manufacturer
Description
Unit Price
In Stock

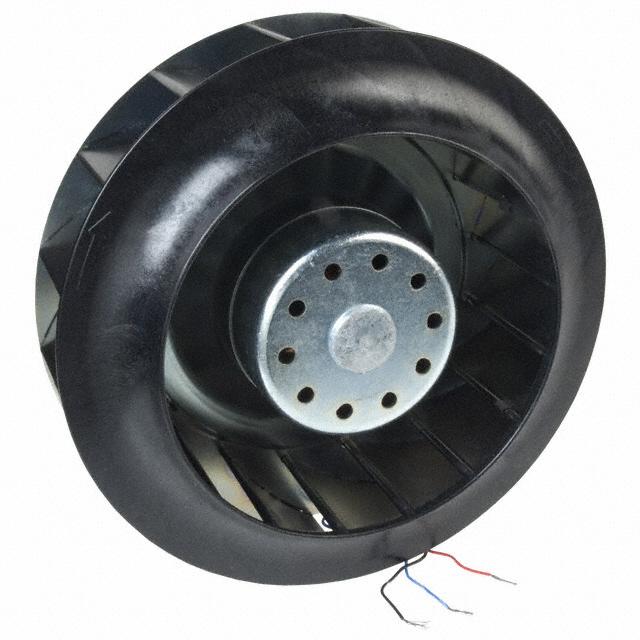

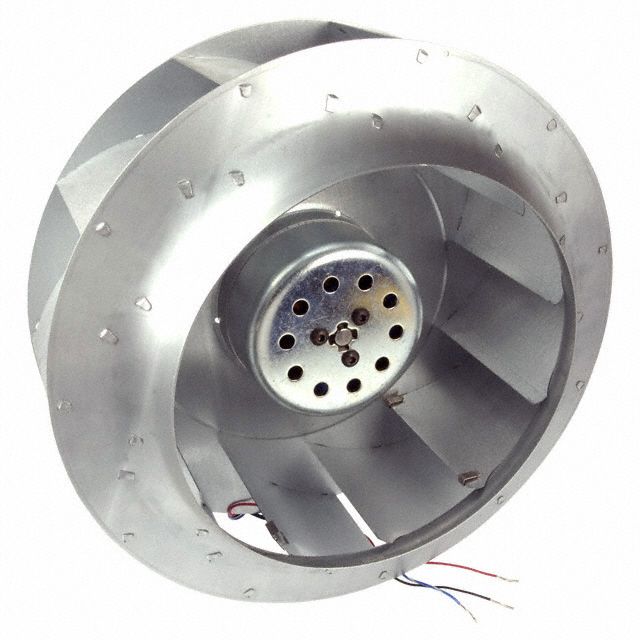

Comair Rotron
Manufacturer : Comair Rotron
Series : Diplomat
Part Status : Obsolete
Voltage - Rated : 48VDC
Size / Dimension : Round - 192mm Dia
Width : 69.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.880 in H2O (219.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Speed Sensor (Tach)
Noise : 53.7 dB(A)
Power (Watts) : 23.00W
RPM : 1850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 2.2 lbs (997.9g)
0
69 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Diplomat
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Round - 192mm Dia
Width : 69.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 1.260 in H2O (313.9 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Speed Sensor (Tach)
Noise : 57.6 dB(A)
Power (Watts) : 30.00W
RPM : 2150 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 2.2 lbs (997.9g)
0
74 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Diplomat
Part Status : Obsolete
Voltage - Rated : 48VDC
Size / Dimension : Round - 227mm Dia
Width : 99.00mm
Air Flow : 625.0 CFM (17.50m鲁/min)
Static Pressure : 2.850 in H2O (709.9 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Speed Sensor (Tach)
Noise : 73.0 dB(A)
Power (Watts) : 100.0W
RPM : 2400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 3.5 lbs (1.6kg)
0
34 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Diplomat
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Round - 281mm Dia
Width : 125.0mm
Air Flow : 1100.0 CFM (30.80m鲁/min)
Static Pressure : 1.850 in H2O (460.8 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Speed Sensor (Tach)
Noise : 68.6 dB(A)
Power (Watts) : 115.0W
RPM : 1800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 3.5 lbs (1.6kg)
0
24 in stock

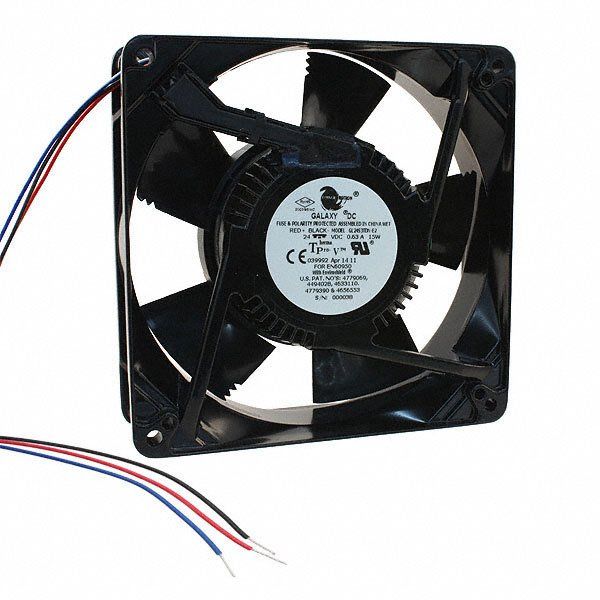

Comair Rotron
Manufacturer : Comair Rotron
Series : Galaxy
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.10mm
Air Flow : 150.0 CFM (4.20m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Fan Performance Sensor (FPS)
Noise : 53.6 dB(A)
Power (Watts) : 15.00W
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
298 in stock

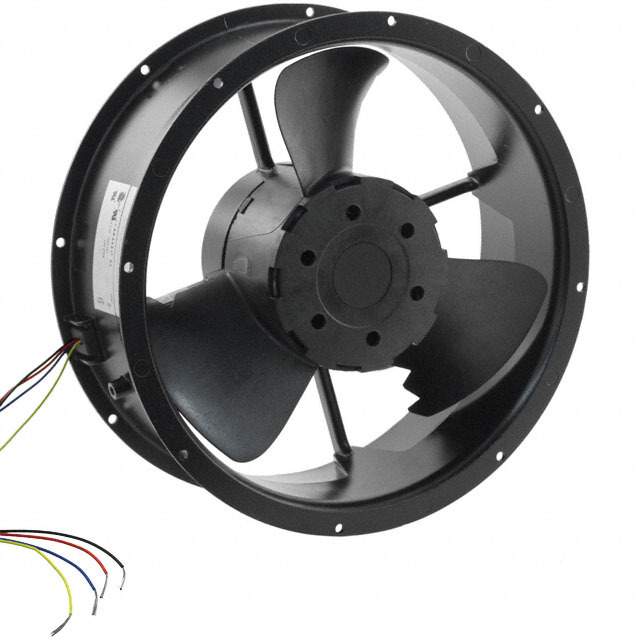

Comair Rotron
Manufacturer : Comair Rotron
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 254mm Dia
Width : 88.90mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)
Noise : 49.1 dB(A)
Power (Watts) : 30.20W
RPM : 1640 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cUR, UL
Weight : -
0
316 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Caravel
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 88.90mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 47.5 dB(A)
Power (Watts) : 29.00W
RPM : 1650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
158 in stock

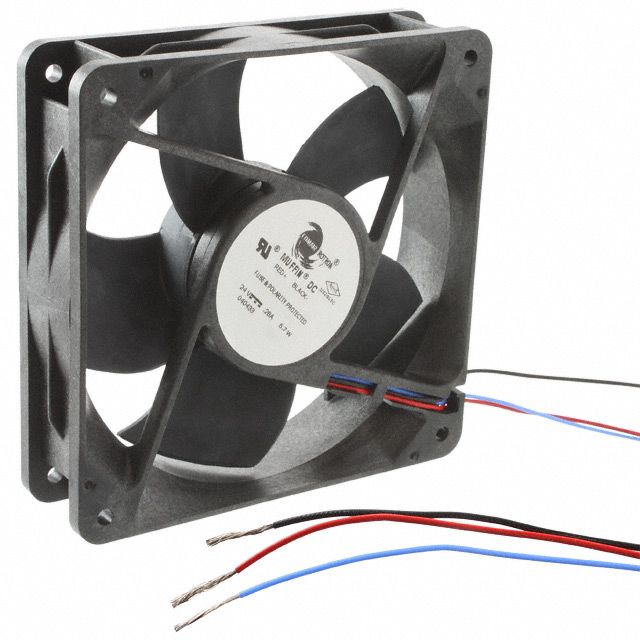

Comair Rotron
Manufacturer : Comair Rotron
Series : Muffin
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Fan Performance Sensor (FPS)
Noise : 47.8 dB(A)
Power (Watts) : 5.50W
RPM : 3700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : UL
Weight : -
0
83 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Major
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 171.4mm L x 150.4mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 54.3 dB(A)
Power (Watts) : 20.10W
RPM : 3500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 1.8 lbs (816.5g)
0
627 in stock

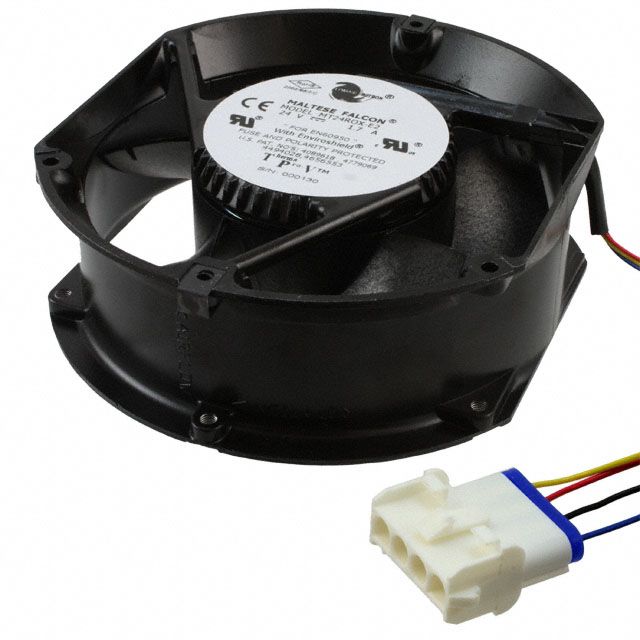

Comair Rotron
Manufacturer : Comair Rotron
Series : Maltese
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 150.4mm H
Width : 55.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : -
Power (Watts) : 41.00W
RPM : 3450 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UL
Weight : -
0
168 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Major
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 1.540 in H2O (383.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 60.0 dB(A)
Power (Watts) : 36.00W
RPM : 4560 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 167°F (-10 ~ 75°C)
Approvals : CSA, UL
Weight : 1.8 lbs (816.5g)
0
171 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Diplomat
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 227mm Dia
Width : 99.00mm
Air Flow : 685.0 CFM (19.18m鲁/min)
Static Pressure : 1.900 in H2O (473.3 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 73.0 dB(A)
Power (Watts) : 106.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cUL, UL
Weight : 3.8 lbs (1.7kg)
0
177 in stock
