CnC Tech

- CnC Tech takes pride in providing reliable industrial connection and interconnect solutions when high quality parts and competitive pricing are important factors. With 17 years of experience, CnC Tech is committed to meeting the demands of an ever changing market.

CnC Tech’s product line includes raw wire, magnet wire, power cords, connectors, interconnects, USB cables, modular cables, standard cables, flat ribbon cables, and board level components, like IC sockets, IDC's, PLCC sockets and USB connectors.

CnC Tech also specializes in fast turnaround custom cables and interconnects with original or equivalent connectors according to customers’ requirements. From flat ribbon cable interconnections, specialized custom cables to power cords of all kinds, CnC Tech’s capabilities are well known in the industry.


Part Number

Manufacturer

Description

Unit Price

In Stock

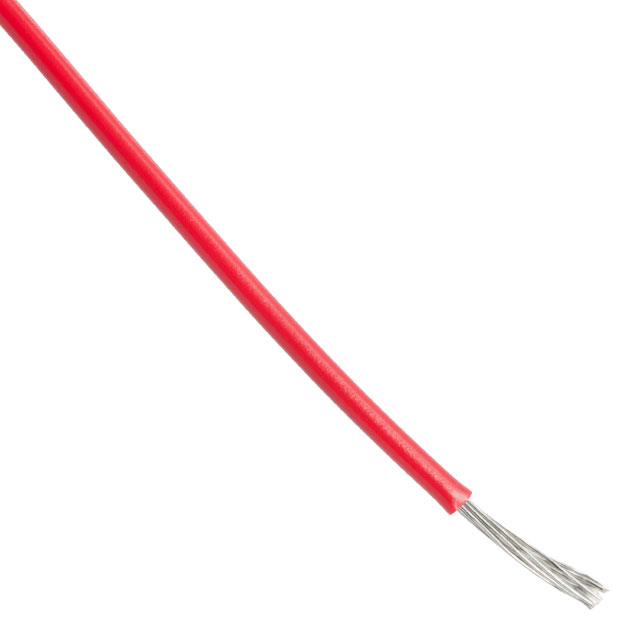

1569-22-1-0500-004-1-TS

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 22 AWG
Conductor Strand : 17/0.0063"
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.063" (1.60mm)
Jacket (Insulation) Thickness : 0.015" (0.38mm)
Length : 500.0' (152.4m)
Voltage : 300V
Operating Temperature : -10°C ~ 105°C
Jacket Color : Red
Ratings : UL Style 1569
Features : Oil Resistant

82 in stock

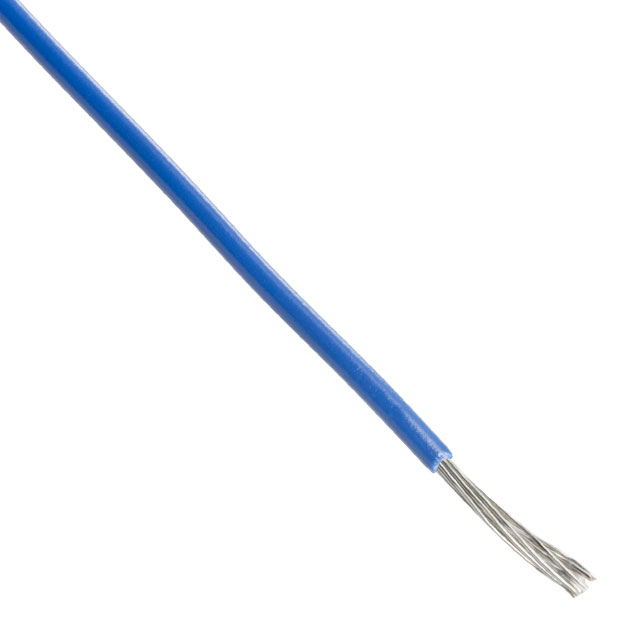

1569-22-1-0500-005-1-TS

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 22 AWG
Conductor Strand : 17/0.0063"
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.063" (1.60mm)
Jacket (Insulation) Thickness : 0.015" (0.38mm)
Length : 500.0' (152.4m)
Voltage : 300V
Operating Temperature : -10°C ~ 105°C
Jacket Color : Blue
Ratings : UL Style 1569
Features : Oil Resistant

48 in stock

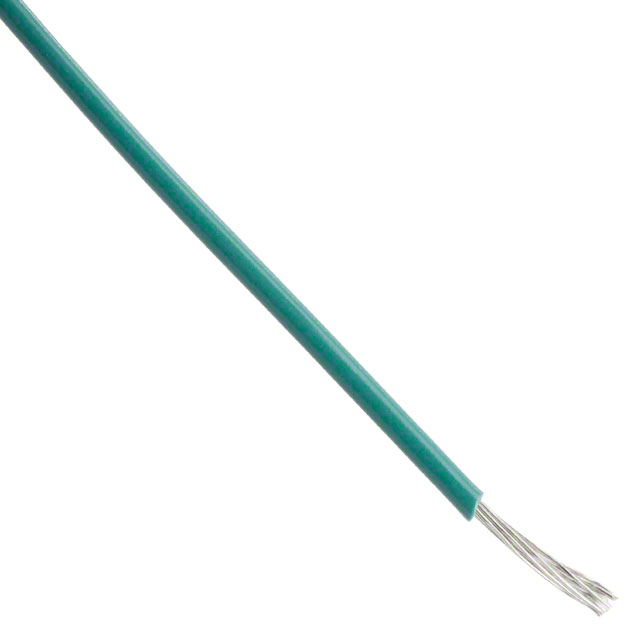

1569-22-1-0500-007-1-TS

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 22 AWG
Conductor Strand : 17/0.0063"
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.063" (1.60mm)
Jacket (Insulation) Thickness : 0.015" (0.38mm)
Length : 500.0' (152.4m)
Voltage : 300V
Operating Temperature : -10°C ~ 105°C
Jacket Color : Green
Ratings : UL Style 1569
Features : Oil Resistant

55 in stock

1569-24-1-0500-001-1-TS

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 24 AWG
Conductor Strand : 11/0.0063"
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.057" (1.45mm)
Jacket (Insulation) Thickness : 0.015" (0.38mm)
Length : 500.0' (152.4m)
Voltage : 300V
Operating Temperature : -10°C ~ 105°C
Jacket Color : Black
Ratings : UL Style 1569
Features : Oil Resistant

49 in stock

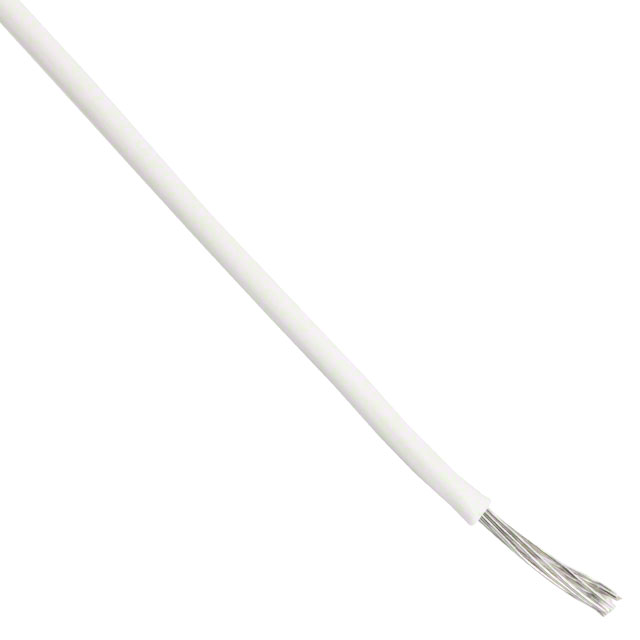

1569-24-1-0500-002-1-TS

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 24 AWG
Conductor Strand : 11/0.0063"
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.057" (1.45mm)
Jacket (Insulation) Thickness : 0.015" (0.38mm)
Length : 500.0' (152.4m)
Voltage : 300V
Operating Temperature : -10°C ~ 105°C
Jacket Color : White
Ratings : UL Style 1569
Features : Oil Resistant

22 in stock

1569-24-1-0500-004-1-TS

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 24 AWG
Conductor Strand : 11/0.0063"
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.057" (1.45mm)
Jacket (Insulation) Thickness : 0.015" (0.38mm)
Length : 500.0' (152.4m)
Voltage : 300V
Operating Temperature : -10°C ~ 105°C
Jacket Color : Red
Ratings : UL Style 1569
Features : Oil Resistant

42 in stock

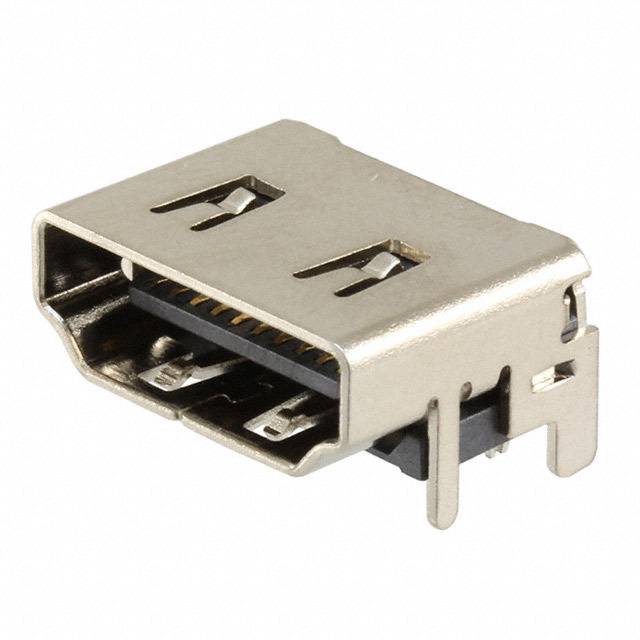

2000-1-1-20-00-BK

CnC Tech

Manufacturer : CNC Tech
Packaging : Tray
Series : -
Part Status : Active
Connector Type : HDMI
Number of Contacts : 19
Gender : Receptacle
Specifications : -
Mounting Type : Through Hole, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : -
Ingress Protection : -
Operating Temperature : -20°C ~ 85°C
Number of Ports : 1
Current Rating : 0.5A
Voltage - Rated : -
Mating Cycles : -
Shielding : -

7748 in stock

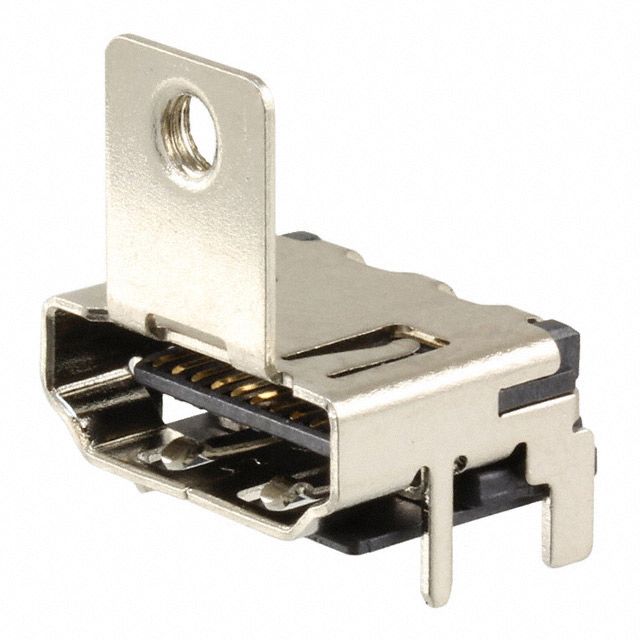

2000-1-2-23-00-BK

CnC Tech

Manufacturer : CNC Tech
Packaging : Tray
Series : -
Part Status : Active
Connector Type : HDMI
Number of Contacts : 19
Gender : Receptacle
Specifications : -
Mounting Type : Surface Mount, Right Angle; Through Hole
Mounting Feature : Flange, Horizontal
Termination : Solder
Features : -
Ingress Protection : -
Operating Temperature : -
Number of Ports : 1
Current Rating : -
Voltage - Rated : -
Mating Cycles : -
Shielding : -

1425 in stock

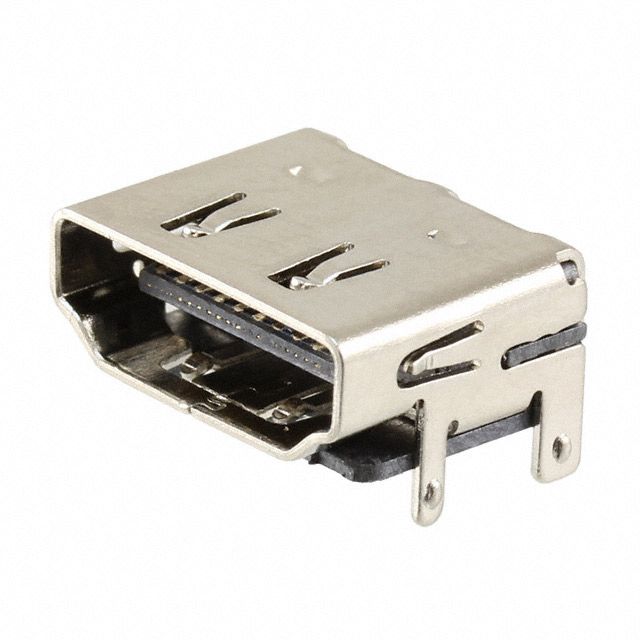

2000-1-2-30-00-BK

CnC Tech

Manufacturer : CNC Tech
Packaging : Tray
Series : -
Part Status : Active
Connector Type : HDMI
Number of Contacts : 19
Gender : Receptacle
Specifications : -
Mounting Type : Surface Mount, Right Angle; Through Hole
Mounting Feature : Horizontal
Termination : Solder
Features : -
Ingress Protection : -
Operating Temperature : -20°C ~ 85°C
Number of Ports : 1
Current Rating : 0.5A
Voltage - Rated : -
Mating Cycles : 10000
Shielding : -

1121 in stock

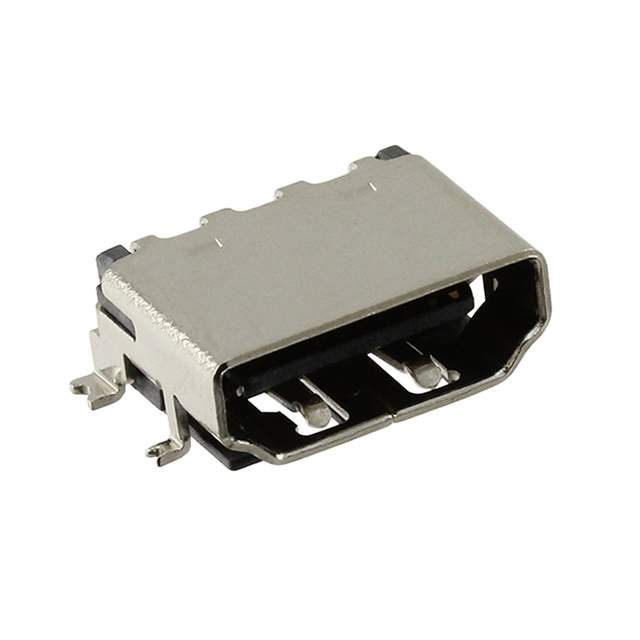

2000-1-2-41-00-BK

CnC Tech

Manufacturer : CNC Tech
Packaging : Tray
Series : -
Part Status : Active
Connector Type : HDMI
Number of Contacts : 19
Gender : Receptacle
Specifications : -
Mounting Type : Surface Mount, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Guide, Solder Retention
Ingress Protection : -
Operating Temperature : -20°C ~ 85°C
Number of Ports : 1
Current Rating : 0.5A
Voltage - Rated : -
Mating Cycles : 10000
Shielding : -

17887 in stock

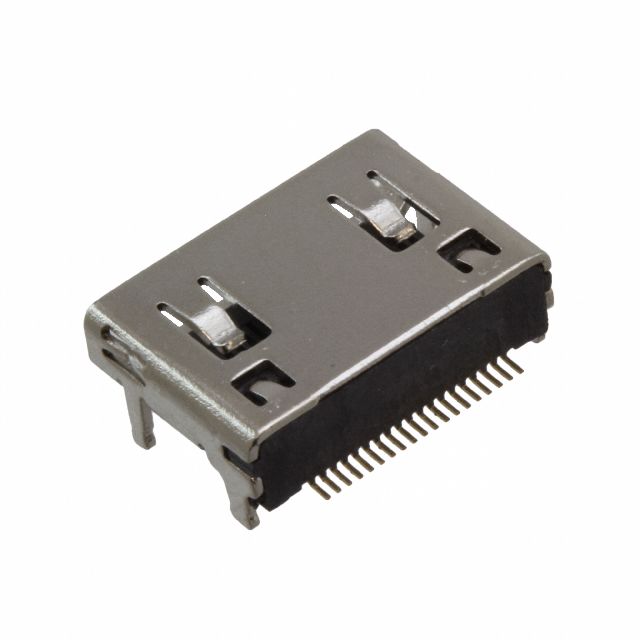

2001-1-2-21-00-BK

CnC Tech

Manufacturer : CNC Tech
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : HDMI - Mini
Number of Contacts : 19
Gender : Receptacle
Specifications : -
Mounting Type : Surface Mount, Right Angle; Through Hole
Mounting Feature : Horizontal
Termination : Solder
Features : Board Guide
Ingress Protection : -
Operating Temperature : -20°C ~ 85°C
Number of Ports : 1
Current Rating : 0.5A
Voltage - Rated : 40V
Mating Cycles : 5000
Shielding : -

14367 in stock

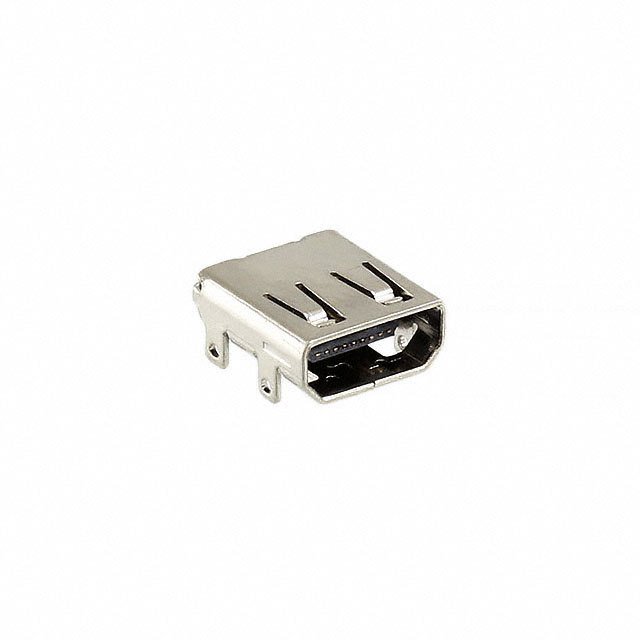

2002-1-2-20-30-BK

CnC Tech

Manufacturer : CNC Tech
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Connector Type : HDMI - Micro
Number of Contacts : 19
Gender : Receptacle
Specifications : -
Mounting Type : Surface Mount, Right Angle; Through Hole
Mounting Feature : Horizontal
Termination : Solder
Features : -
Ingress Protection : -
Operating Temperature : -20°C ~ 85°C
Number of Ports : 1
Current Rating : 0.3A
Voltage - Rated : 40V
Mating Cycles : 5000
Shielding : -

2246 in stock
