Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

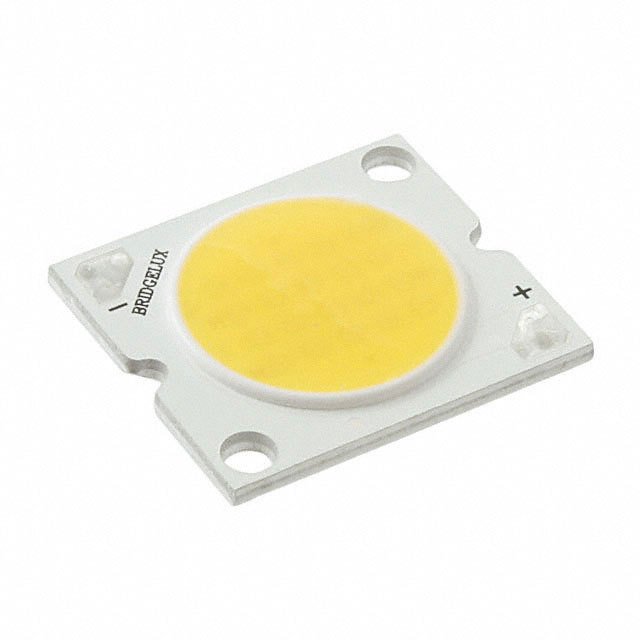

BXRA-27G2000-B-00 BXRA-27G2000-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1975 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27G2000-B-03 BXRA-27G2000-B-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1975 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27G3500-F-00 BXRA-27G3500-F-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2570 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.2V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 2.25A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27G3500-F-03 BXRA-27G3500-F-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2570 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.2V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 2.25A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

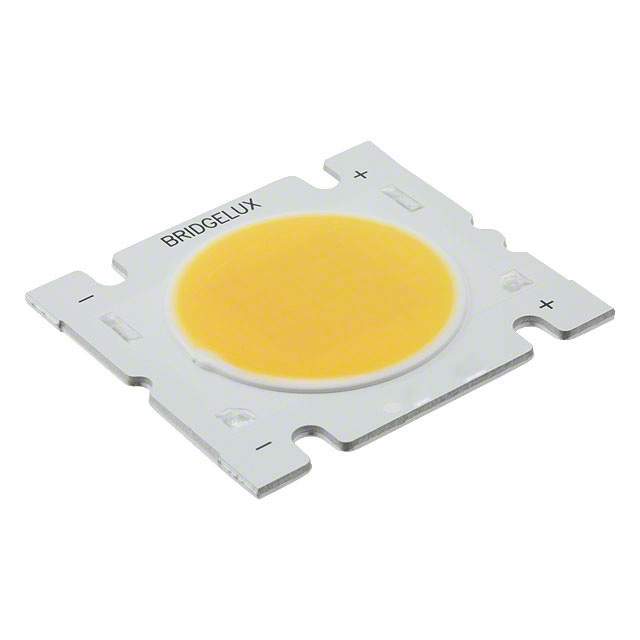

BXRA-27G4000-H-00 BXRA-27G4000-H-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3950 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27G4000-H-03 BXRA-27G4000-H-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3950 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 80 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27G7000-J-00 BXRA-27G7000-J-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6275 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 30.5V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 3.75A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27G7000-J-03 BXRA-27G7000-J-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6275 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 30.5V
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 3.75A
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-27H0740-A-03 BXRA-27H0740-A-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 510 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27.3V
Lumens/Watt @ Current - Test : 53 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 97
Viewing Angle : 120°
Features : -
Size / Dimension : 20.20mm Diameter
Height : 3.00mm
Light Emitting Surface (LES) : 10.90mm Diameter
Lens Type : Flat
0
100 in stock

BXRA-27H4000-H-03 BXRA-27H4000-H-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2795 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 57 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 97
Viewing Angle : 120°
Features : -
Size / Dimension : 49.50mm W x 45.30mm H
Height : 2.60mm
Light Emitting Surface (LES) : 35.00mm Diameter
Lens Type : Flat
0
100 in stock

BXRA-27H7000-J-03 BXRA-27H7000-J-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4390 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 29.4V
Lumens/Watt @ Current - Test : 53 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 97
Viewing Angle : 120°
Features : -
Size / Dimension : 49.50mm W x 45.30mm H
Height : 2.60mm
Light Emitting Surface (LES) : 35.00mm Diameter
Lens Type : Flat
0
100 in stock

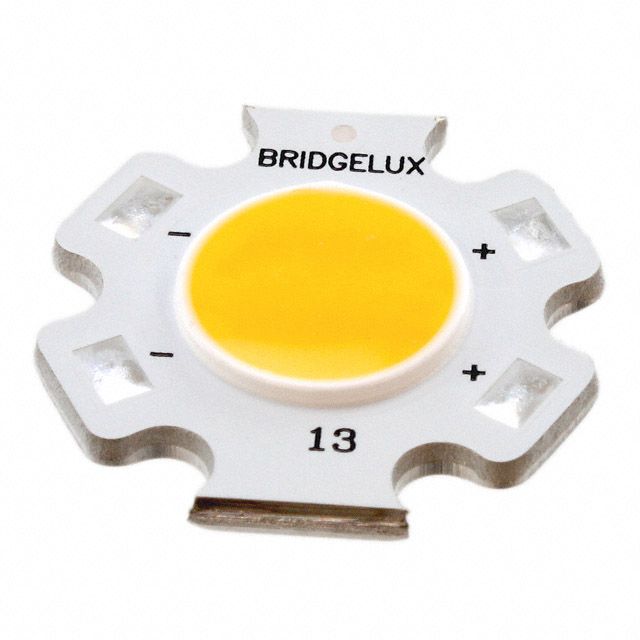

BXRA-30E0540-A-00 BXRA-30E0540-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 630 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.2V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
