ASSMANN WSW Components

- The qualified partner for manufacturing, procurement and marketing of connectors, individual solutions and customer designed cable assemblies.

Company Development Since 1969
Today - founded in 1969 - ASSMANN WSW Components has grown into a world-wide operating specialist of electro-mechanical components, thermal management products and computer network accessories.

Service To Our Customers
ASSMANN WSW Components is one of the most important enterprise of Logistics-services for the Electronics industry and for the specialized trade distribution. ASSMANN's professionalism covers it competent development and manufacturing as well. This includes its own global network for purchasing and trading and is the basic for its logistics Management of high performance.

Continuous Quality Control
All our products have meet the ASSMANN Quality Test. ASSMANN WSW Components is certified under DIN EN ISO 9001:2000. In 2003 ASSMANN WSW Components put into action an environmental management system in accordance to DIN EN ISO 14001. We do business only with certified contractors.


Part Number

Manufacturer

Description

Unit Price

In Stock

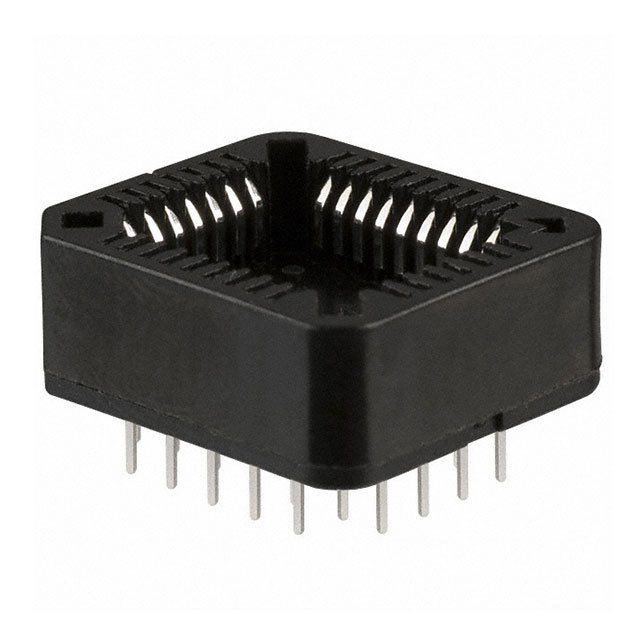

A-CCS 032-Z-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 32 (4 x 8)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

5778 in stock

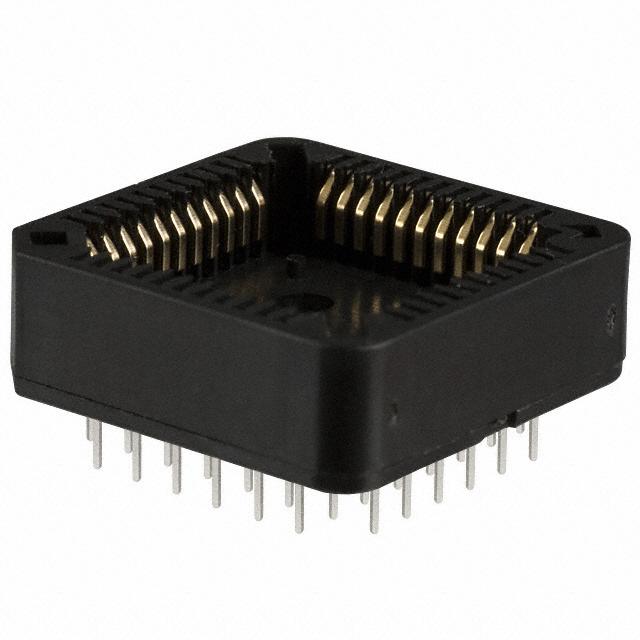

A-CCS 044-G-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 44 (4 x 11)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : -
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

1656 in stock

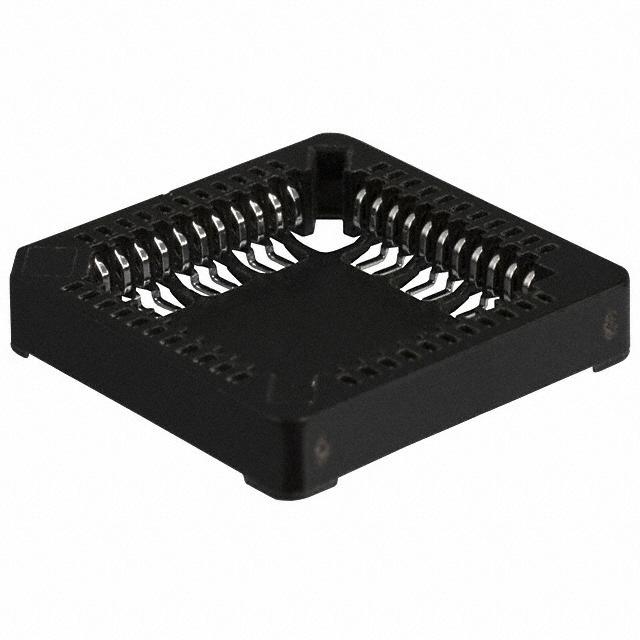

A-CCS 044-Z-SM

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 44 (4 x 11)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polyamide (PA9T), Nylon 9T, Glass Filled
Operating Temperature : -40°C ~ 105°C

16450 in stock

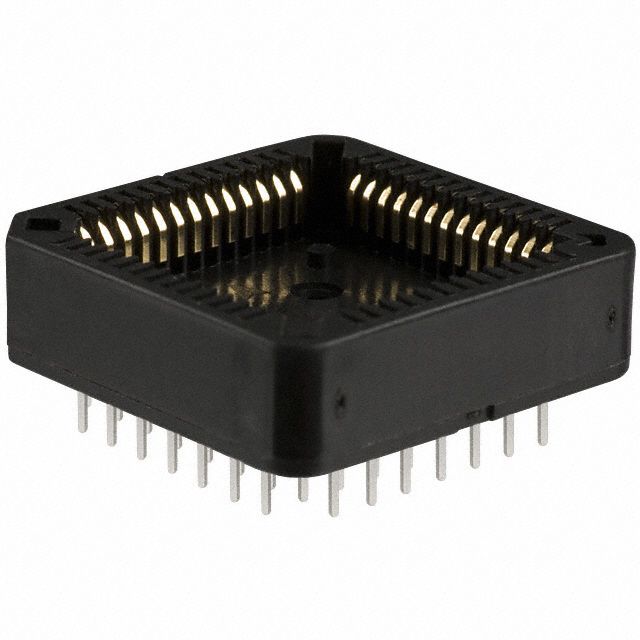

A-CCS 052-G-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 52 (4 x 13)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : -
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

2425 in stock

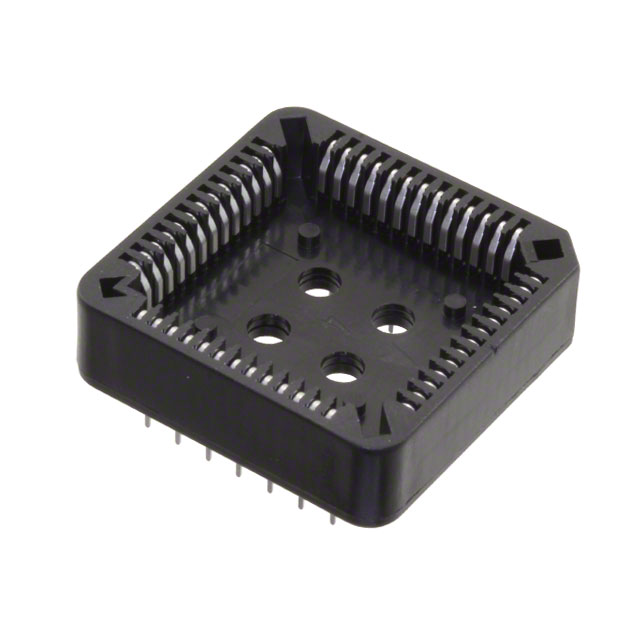

A-CCS 052-Z-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 52 (4 x 13)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

5382 in stock

A-CCS 068-G-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 68 (4 x 17)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : -
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

2262 in stock

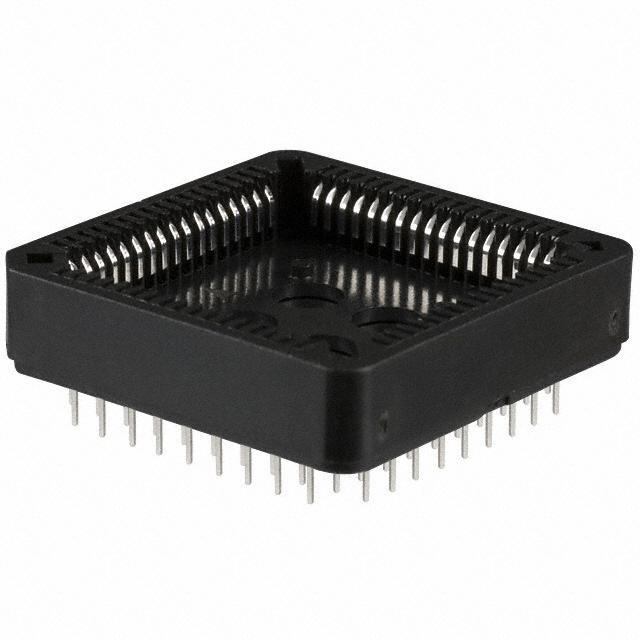

A-CCS 068-Z-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 68 (4 x 17)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

11455 in stock

A-CCS 084-G-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 84 (4 x 21)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : -
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

767 in stock

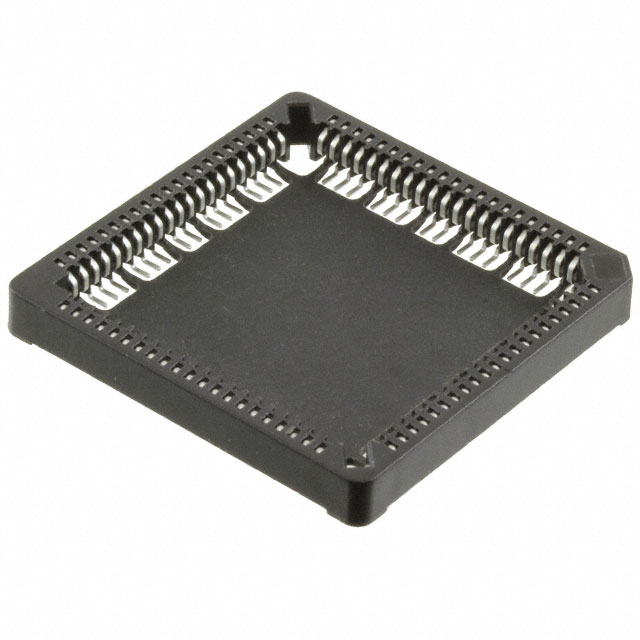

A-CCS 084-Z-SM

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 84 (4 x 21)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Surface Mount
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polyamide (PA9T), Nylon 9T, Glass Filled
Operating Temperature : -40°C ~ 105°C

195 in stock

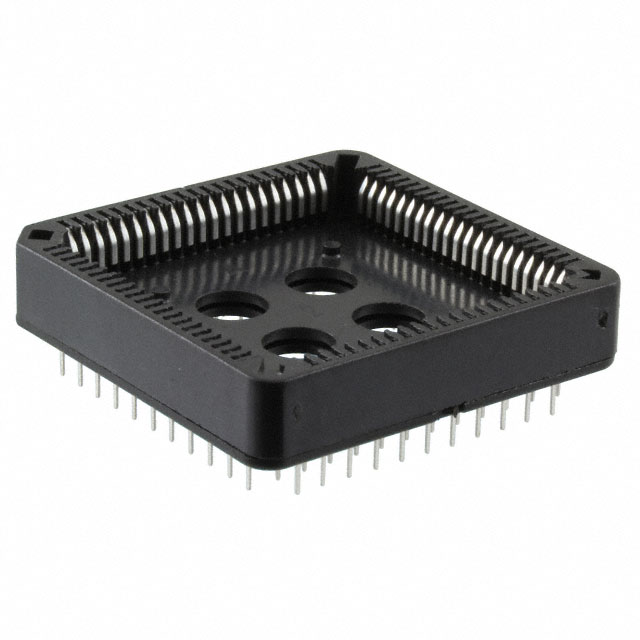

A-CCS 084-Z-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 84 (4 x 21)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

2600 in stock

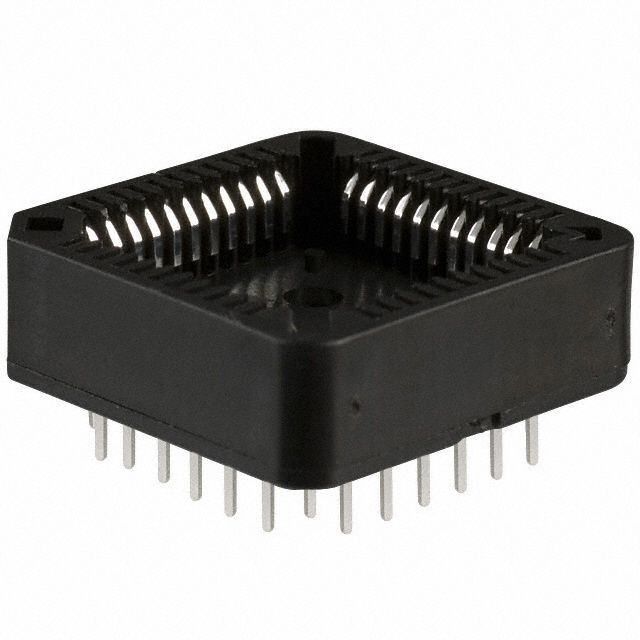

A-CCS-044-Z-T

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Packaging : Tube
Series : -
Part Status : Active
Type : PLCC
Number of Positions or Pins (Grid) : 44 (4 x 11)
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 160.0µin (4.06µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 160.0µin (4.06µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT)
Operating Temperature : -40°C ~ 105°C

11702 in stock

ACOV-SUB-09MB1

ASSMANN WSW Components

Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Accessory Type : Two Piece Backshell
Number of Positions : 9
Cable Type : Round
Cable Exit : 180°
Shielding : Shielded
Material : Acrylonitrile Butadiene Styrene (ABS)
Plating : Nickel over Copper
Hardware : Assembly Hardware, Grommets
Features : Mating Screws 4-40
Color : Silver

100 in stock
