API Technologies Corp.
- API Technologies Corp. is a leading technology provider of RF/microwave, microelectronics, and security technologies for critical and high-reliability applications. The company's international customers include leading Fortune 500 firms, as well as the governments of the U.S., Canada, the United Kingdom, NATO and the European Union. Featured product brands include: Spectrum Microwave, National Hybrid, Spectrum Control, Spectrum Power, Spectrum Sensors, Cryptek, ION Networks, SST, Filtran, and EMCON.
Part Number
Manufacturer
Description
Unit Price
In Stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 30dB @ 100MHz
Resistance - Channel (Ohms) : -
Current : 10A
Values : C = 5000pF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing
Size / Dimension : 0.156" Dia x 0.340" L (3.96mm x 8.64mm)
Height : -
0
100 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 70dB @ 100MHz ~ 1GHz
Resistance - Channel (Ohms) : 0.005
Current : 15A
Values : C = 0.25µF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 400V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.687" Dia x 0.624" L (17.45mm x 15.84mm)
Height : -
0
100 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.615GHz
Frequency Range : 1.605GHz ~ 1.625GHz
Antenna Type : Module
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Cable (254mm)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.885" (22.48mm)
Applications : -
0
100 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Module
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 2dBic
Power - Max : -
Features : -
Termination : Cable (254mm) - SMA Male (1)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.505" (12.83mm)
Applications : -
0
10 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.615GHz
Frequency Range : 1.605GHz ~ 1.625GHz
Antenna Type : Module
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Cable (254mm) - SMA Male (1)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.505" (12.83mm)
Applications : -
0
100 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.621GHz
Frequency Range : 1.616GHz ~ 1.626GHz
Antenna Type : Module
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Cable (254mm) - SMA Male (1)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.505" (12.83mm)
Applications : -
0
100 in stock

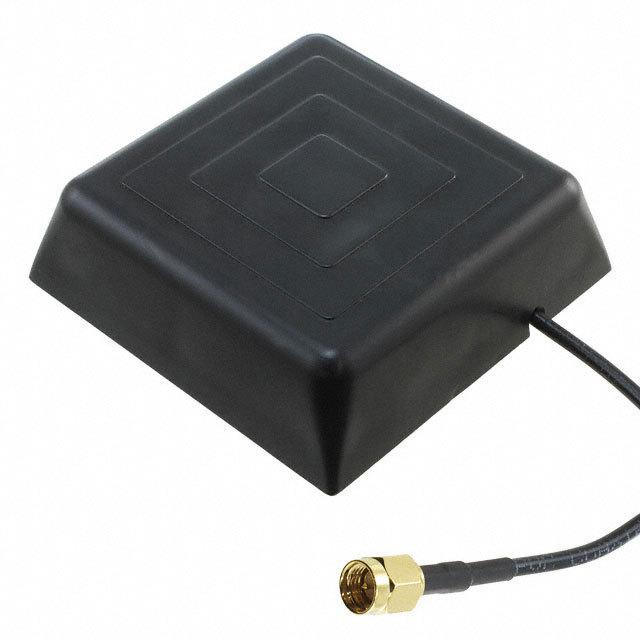

API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.592GHz
Frequency Range : 1.567GHz ~ 1.617GHz
Antenna Type : Module
Number of Bands : 1
VSWR : 3.1
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Cable (254mm)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.885" (22.48mm)
Applications : -
0
100 in stock

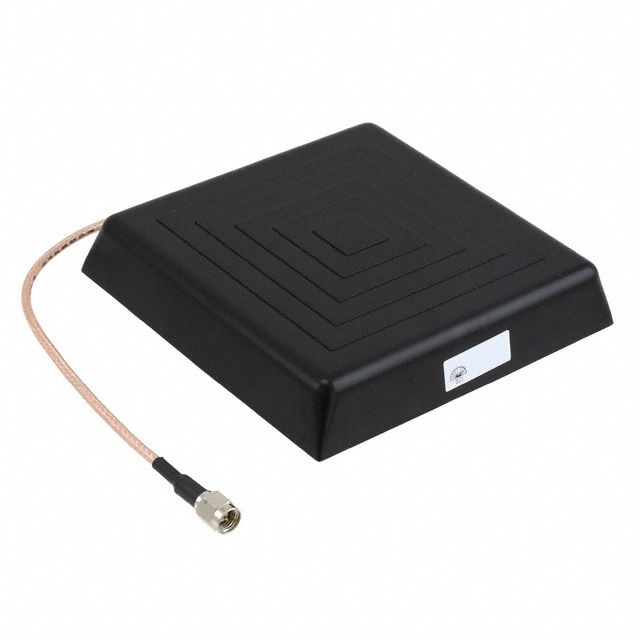

API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Obsolete
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 864MHz ~ 872MHz
Antenna Type : Module
Number of Bands : 1
VSWR : 3.1
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Cable (254mm) - SMA Male (1)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.870" (22.10mm)
Applications : -
0
100 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Bulk
Series : -
Part Status : Discontinued at
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 911MHz ~ 919MHz
Antenna Type : Module
Number of Bands : 1
VSWR : 3.1
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Cable (254mm) - SMA Male (1)
Ingress Protection : -
Mounting Type : Magnetic, Chassis Mount
Height (Max) : 0.870" (22.10mm)
Applications : -
0
100 in stock

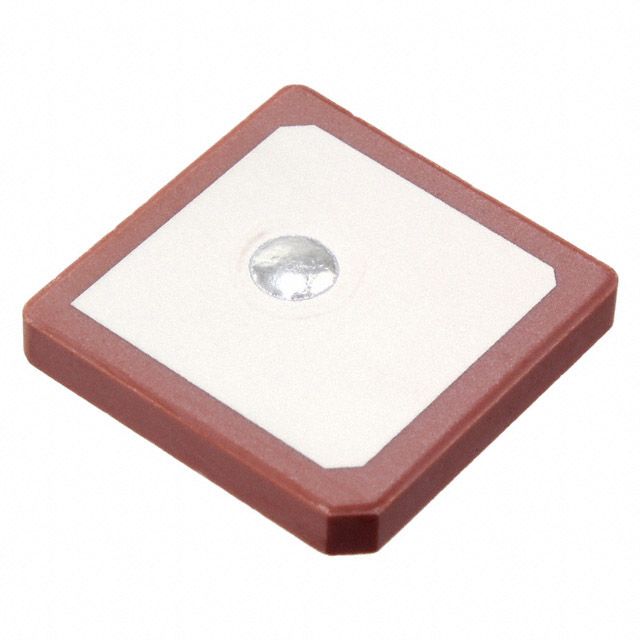

API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.572GHz ~ 1.578GHz
Antenna Type : Ceramic Patch
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 2dBic
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.221" (5.61mm)
Applications : GPS
0
100 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.579GHz
Frequency Range : 1.575GHz ~ 1.583GHz
Antenna Type : Ceramic Patch
Number of Bands : 1
VSWR : 2.1
Return Loss : -14dB
Gain : 4dBic
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.221" (5.61mm)
Applications : GPS
0
9 in stock
API Technologies Corp.
Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.615GHz
Frequency Range : 1.61GHz ~ 16.2GHz
Antenna Type : Ceramic Patch
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 3dBic
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.215" (5.46mm)
Applications : Globalstar
0
100 in stock
