Altera (Intel)

- Intel and Altera announced on June 1, 2015, that they had entered into a definitive agreement under which Intel would acquire Altera. The transaction closed December 28, 2015. The acquisition couples Intel’s leading-edge products and manufacturing process with Altera’s leading field-programmable gate array (FPGA) technology. The combination enables new classes of products that meet customer needs in the data center and Internet of Things (IoT) market segments.


Part Number

Manufacturer

Description

Unit Price

In Stock

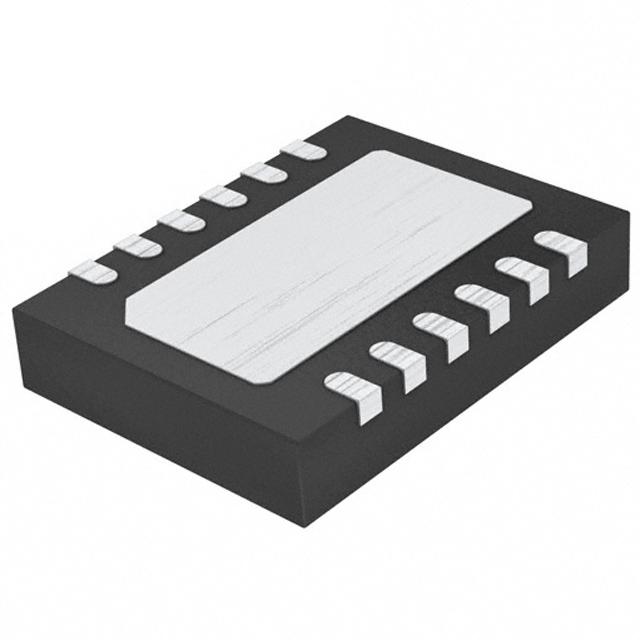

ER3110DI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 36V
Voltage - Output (Min/Fixed) : 0.6V
Voltage - Output (Max) : 34V
Current - Output : 1A
Frequency - Switching : 300kHz ~ 2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 125°C (TA)
Mounting Type : Surface Mount
Package / Case : 12-VFDFN Exposed Pad
Supplier Device Package : 12-DFN (4x3)

555 in stock

ER3125QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Function : Step-Down, Step-Up/Step-Down
Output Configuration : Positive
Topology : Buck, Buck-Boost
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 36V
Voltage - Output (Min/Fixed) : 0.5V
Voltage - Output (Max) : 36V
Current - Output : 2.5A
Frequency - Switching : 200kHz ~ 2.2MHz
Synchronous Rectifier : Both
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-VFQFN Exposed Pad
Supplier Device Package : 20-QFN-EP (4x4)

951 in stock

ER6230QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Programmable
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 6.6V
Voltage - Output (Min/Fixed) : 0.75V
Voltage - Output (Max) : 6.33V
Current - Output : 3A
Frequency - Switching : 1.9MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)

100 in stock

ES1010SI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Type : Hot Swap Controller
Number of Channels : 1
Internal Switch(s) : No
Applications : General Purpose
Features : Latched Fault
Programmable Features : Current Limit, Fault Timeout, Slew Rate, UVLO
Voltage - Supply : 10.2 V ~ 13.8 V
Current - Output (Max) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply : 3mA
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC

1224 in stock

ES1020QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Applications : Power Supply Sequencer
Voltage - Input : -
Voltage - Supply : 1.5 V ~ 5 V
Current - Supply : 200µA
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)

216 in stock

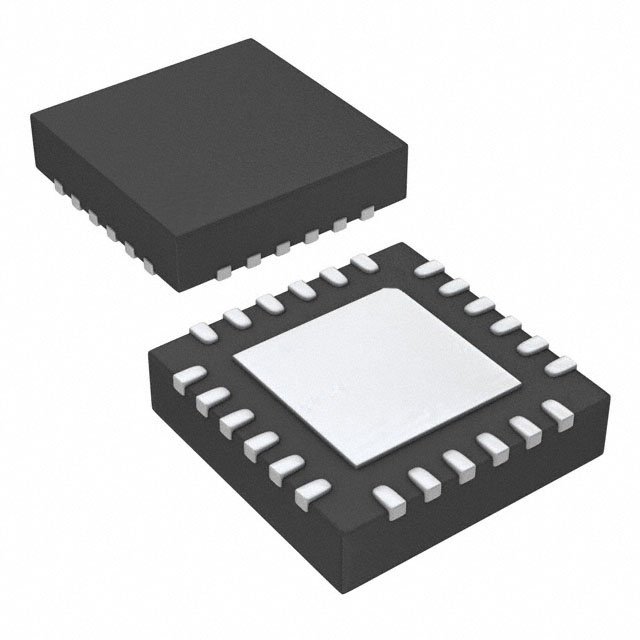

ES1021QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Applications : Power Supply Sequencer
Voltage - Input : -
Voltage - Supply : 1.5 V ~ 5.5 V
Current - Supply : 200µA
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)

990 in stock

ES1022SI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Discontinued at
Applications : Power Supply Sequencer
Voltage - Input : 3.3 V ~ 24 V
Voltage - Supply : 3.3 V ~ 24 V
Current - Supply : 286µA
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC

185 in stock

ES1030QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Applications : Power Supply Controller, Sequencer
Voltage - Input : -
Voltage - Supply : 1.71 V ~ 5.5 V
Current - Supply : 300µA
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 20-UFQFN
Supplier Device Package : 20-STQFN (3x2)

3265 in stock

ESW-SOCEDS-DS5/DKE

Altera (Intel)

Manufacturer : Intel
Series : *
Part Status : Obsolete
Type : -
Applications : -
Edition : -
License Length : -
License - User Details : -
Operating System : -
For Use With/Related Products : -
Media Delivery Type : -

100 in stock

ESW-SOCEDS-DS5-FIX

Altera (Intel)

Manufacturer : Intel
Series : -
Part Status : Active
Type : Design Software
Applications : Programming
Edition : DS-5
License Length : -
License - User Details : -
Operating System : Linux, Windows
For Use With/Related Products : Altera
Media Delivery Type : Electronically Delivered

100 in stock

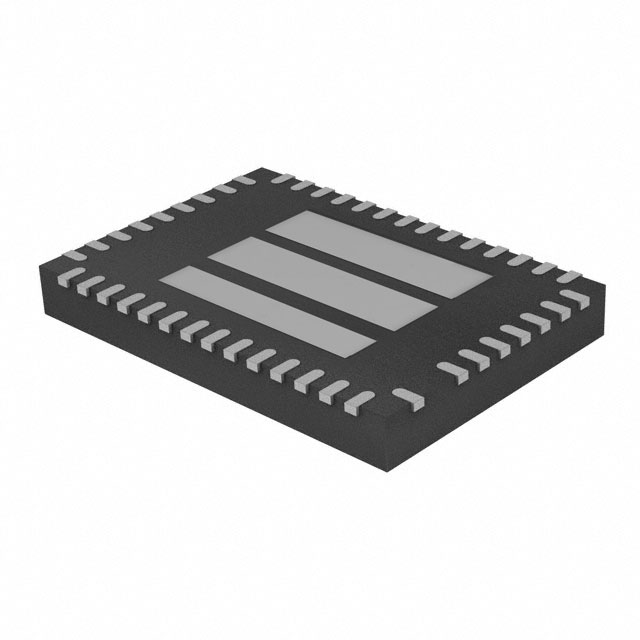

ET4040QI

Altera (Intel)

Manufacturer : Intel
Packaging : Tape & Reel (TR)
Series : Enpirion®
Part Status : Obsolete
Applications : Converter, DDR
Voltage - Input : 4.5 V ~ 14.5 V
Number of Outputs : 1
Voltage - Output : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 46-VFQFN Exposed Pad
Supplier Device Package : 46-QFN (5.5x7.5)

100 in stock

EV1320QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Applications : Converter, DDR
Voltage - Input : 0.95 V ~ 1.8 V, 3 V ~ 3.465 V
Number of Outputs : 1
Voltage - Output : 0.5 V ~ 0.9 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 16-UFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)

2211 in stock
