Alpha Wire

- Alpha Wire designs and manufactures wire, cable, tubing, and accessories for a broad range of applications and markets to help customers solve critical production and manufacturing challenges. Combining the highest quality with legendary customer service, Alpha products mean peace of mind. Alpha Wire’s flagship line of Xtra-Guard® High-Performance cables offer superior performance in demanding environments, while the new EcoGen™ product line offers an environmentally friendly alternative to traditional PVC wire and cable. Alpha FIT® line of heat-shrink tubing and wire management offers reliable ways to seal and protect electrical and electronic wiring. With 12 product families encompassing more than 50,000 products available worldwide, Alpha is dedicated to providing the right product for every application.

Part Number
Manufacturer
Description
Unit Price
In Stock

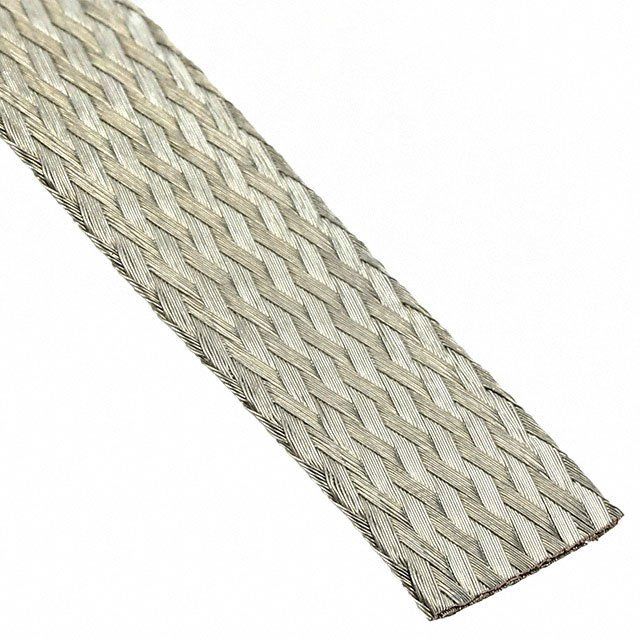

1240 SV005  1240 SV005

Alpha Wire
Manufacturer : Alpha Wire
Series : FIT®
Part Status : Active
Type : Flat
Material : Copper, Tinned
Size, Supplied : 1.500" (38.10mm, 1 1/2") - Width
Thickness : 0.060" (1.52mm)
Number of Carriers : 48
Wire Gauge - Ends : 30 AWG
Length : 100' (30.5m)
0
3 in stock

1242 SV005  1242 SV005

Alpha Wire
Manufacturer : Alpha Wire
Series : FIT®
Part Status : Active
Type : Flat
Material : Copper, Tinned
Size, Supplied : 2.000" (50.80mm) - Width
Thickness : 0.120" (3.05mm)
Number of Carriers : 48
Wire Gauge - Ends : 30 AWG
Length : 100' (30.5m)
0
1 in stock

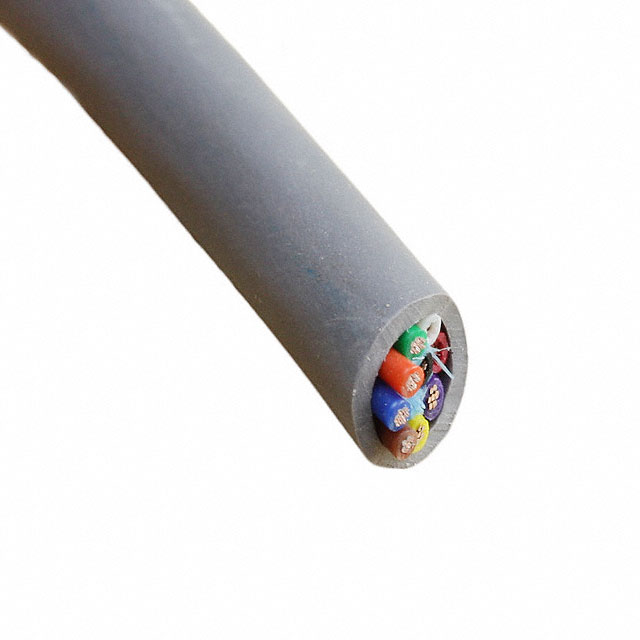

1299C SL005  1299C SL005

Alpha Wire
Manufacturer : Alpha Wire
Series : -
Part Status : Active
Cable Type : Multi-Conductor
Number of Conductors : 9
Wire Gauge : 22 AWG
Conductor Strand : 7/30
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.250" (6.35mm)
Shield Type : Foil
Length : 100.0' (30.5m)
Jacket Color : Slate
Ratings : -
Features : Drain Wire
Voltage : 300V
Operating Temperature : -20°C ~ 80°C
Usage : Communication, Control
Jacket (Insulation) Thickness : 0.0320" (0.813mm)
0
31 in stock

1555 BK005  1555 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-76B Type MW
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 18 AWG
Conductor Strand : 16/30
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.079" (2.01mm)
Jacket (Insulation) Thickness : 0.016" (0.41mm)
Length : 100.0' (30.5m)
Voltage : 1000V
Operating Temperature : -40°C ~ 80°C
Jacket Color : Black
Ratings : -
Features : -
0
11 in stock

172619 BK005  172619 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 19/38
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.040" (1.02mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 300V
Operating Temperature : -55°C ~ 105°C
Jacket Color : Black
Ratings : -
Features : -
0
43 in stock

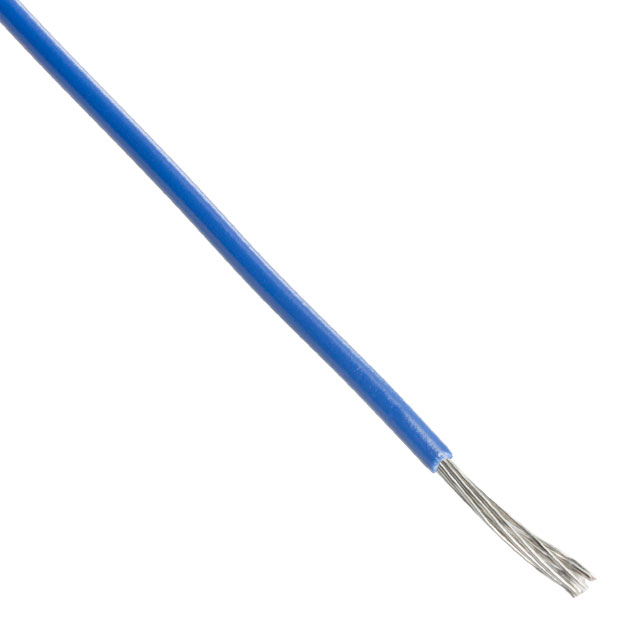

172619 BL005  172619 BL005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 19/38
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.040" (1.02mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 300V
Operating Temperature : -55°C ~ 105°C
Jacket Color : Blue
Ratings : -
Features : -
0
27 in stock

172619 RD005  172619 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 19/38
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.040" (1.02mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 300V
Operating Temperature : -55°C ~ 105°C
Jacket Color : Red
Ratings : -
Features : -
0
20 in stock

172619 WH005  172619 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 19/38
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.040" (1.02mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 300V
Operating Temperature : -55°C ~ 105°C
Jacket Color : White
Ratings : -
Features : -
0
10 in stock

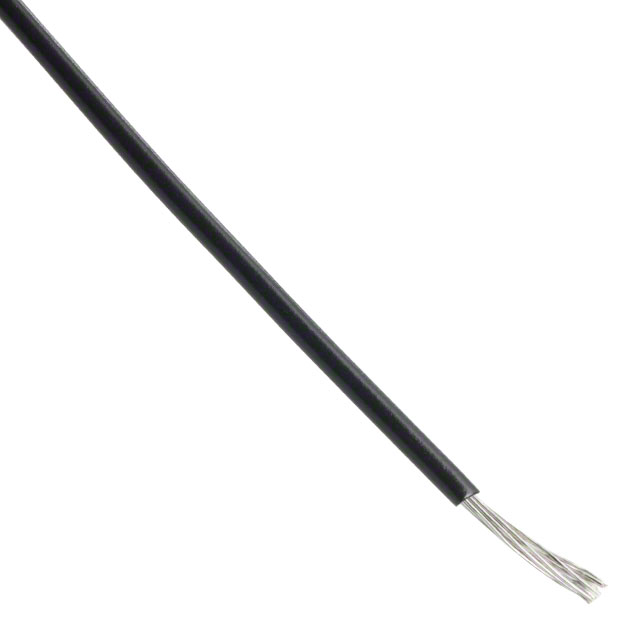

1852 BK005  1852 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1 and MIL-W-76B Type LW
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.035" (0.89mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -55°C ~ 105°C
Jacket Color : Black
Ratings : -
Features : -
0
242 in stock

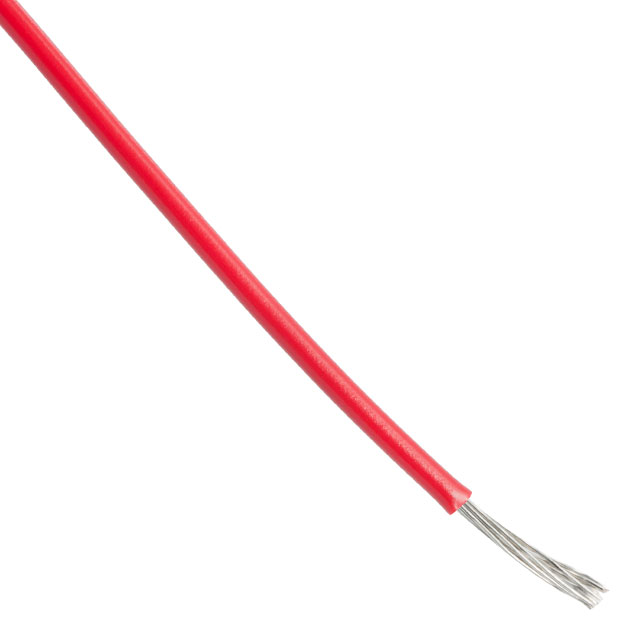

1852 RD005  1852 RD005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1 and MIL-W-76B Type LW
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.035" (0.89mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -55°C ~ 105°C
Jacket Color : Red
Ratings : -
Features : -
0
32 in stock

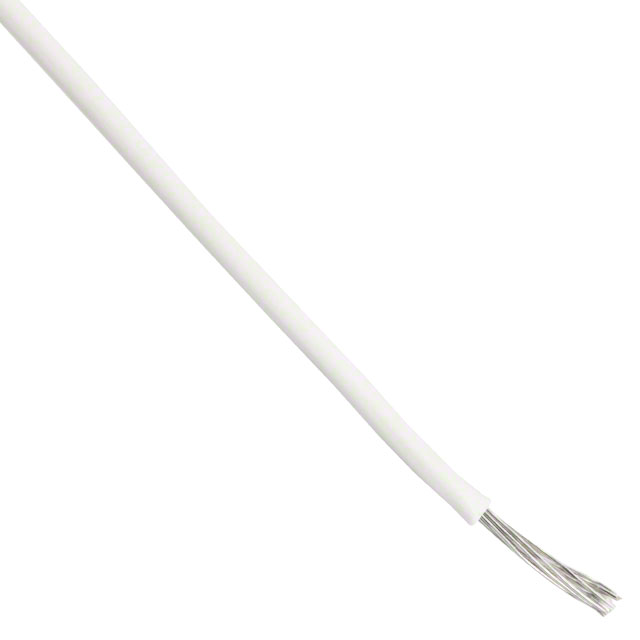

1852 WH005  1852 WH005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1 and MIL-W-76B Type LW
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.035" (0.89mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -55°C ~ 105°C
Jacket Color : White
Ratings : -
Features : -
0
10 in stock

1853 BK005  1853 BK005

Alpha Wire
Manufacturer : Alpha Wire
Series : MIL-W-16878E/1 and MIL-W-76B Type LW
Part Status : Active
Cable Type : Hook-Up
Wire Gauge : 26 AWG
Conductor Strand : 7/34
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.039" (0.99mm)
Jacket (Insulation) Thickness : 0.010" (0.25mm)
Length : 100.0' (30.5m)
Voltage : 600V
Operating Temperature : -55°C ~ 105°C
Jacket Color : Black
Ratings : -
Features : -
0
42 in stock
