Allegro MicroSystems, LLC.
- Allegro MicroSystems, (Allegro) is a leader in developing high-performance power and sensing semiconductors. Allegro's innovative solutions serve high-growth applications within the automotive market, with additional focus on industrial and consumer/computing solutions. Allegro is headquartered in Manchester, New Hampshire (USA) with design, applications, and sales support centers located worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock

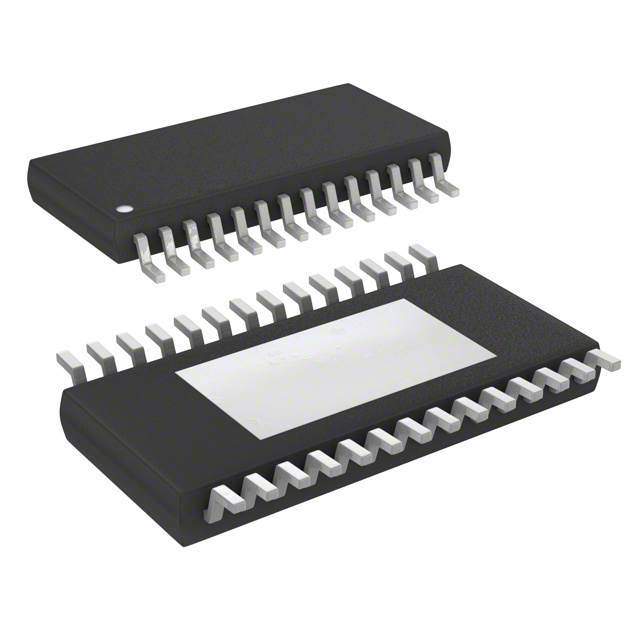

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : DMOS
Step Resolution : 1, 1/2, 1/4, 1/16
Applications : General Purpose
Current - Output : 2.8A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 28-TSSOP-EP
0
7793 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : DMOS
Step Resolution : 1, 1/2, 1/4, 1/8
Applications : General Purpose
Current - Output : 2.8A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 28-TSSOP-EP
0
8746 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : DMOS
Step Resolution : 1, 1/2, 1/4, 1/16
Applications : General Purpose
Current - Output : 2.8A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 28-TSSOP-EP
0
10258 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : DMOS
Step Resolution : 1 ~ 1/32
Applications : General Purpose
Current - Output : 2A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 24-WFQFN Exposed Pad
Supplier Device Package : 24-QFN-EP (4x4)
0
9884 in stock

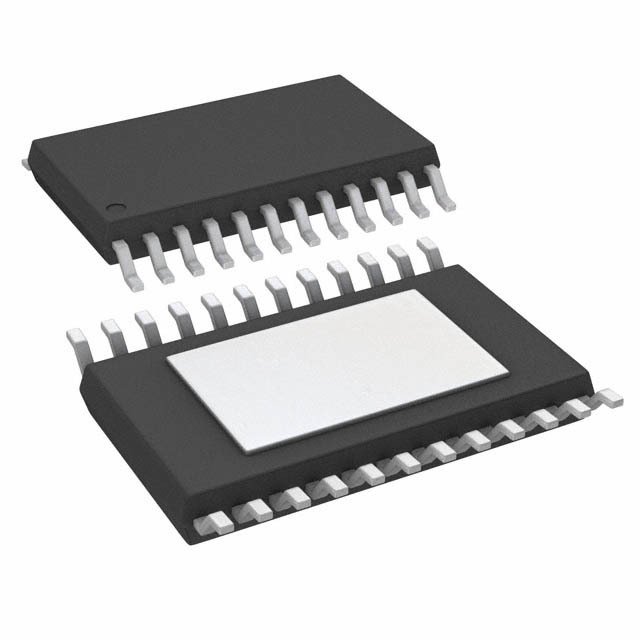

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : DMOS
Step Resolution : 1 ~ 1/32
Applications : General Purpose
Current - Output : 2A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 24-TSSOP
0
19017 in stock

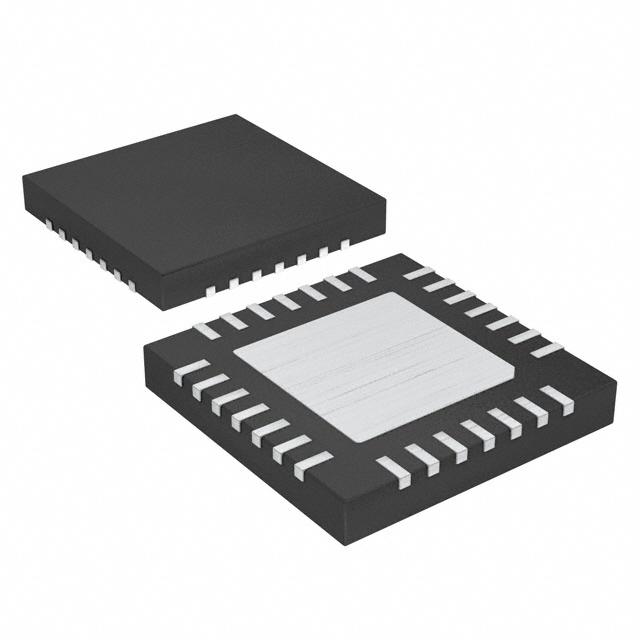

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : DMOS
Step Resolution : 1 ~ 1/32
Applications : General Purpose
Current - Output : 2A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-VFQFN Exposed Pad
Supplier Device Package : 28-QFN (5x5)
0
7046 in stock

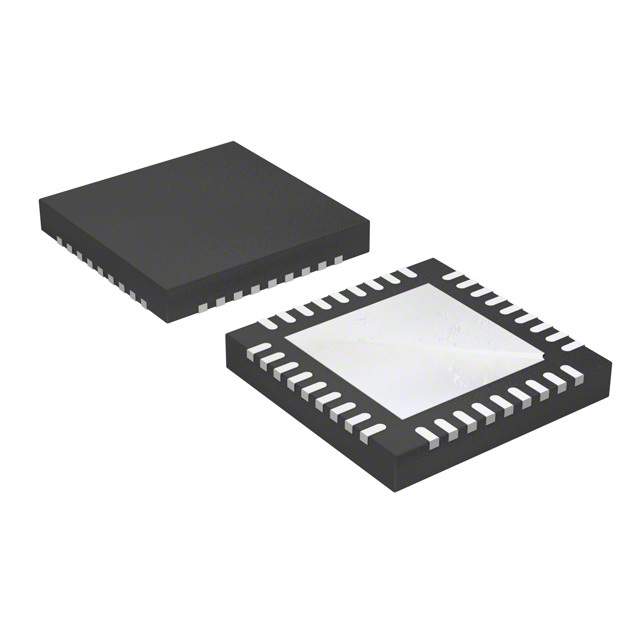

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (8)
Interface : PWM
Technology : DMOS
Step Resolution : 1, 1/2, 1/4
Applications : General Purpose
Current - Output : 1.6A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN-EP (6x6)
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (8)
Interface : PWM
Technology : DMOS
Step Resolution : 1, 1/2, 1/4
Applications : General Purpose
Current - Output : 1.6A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN-EP (6x6)
0
5879 in stock

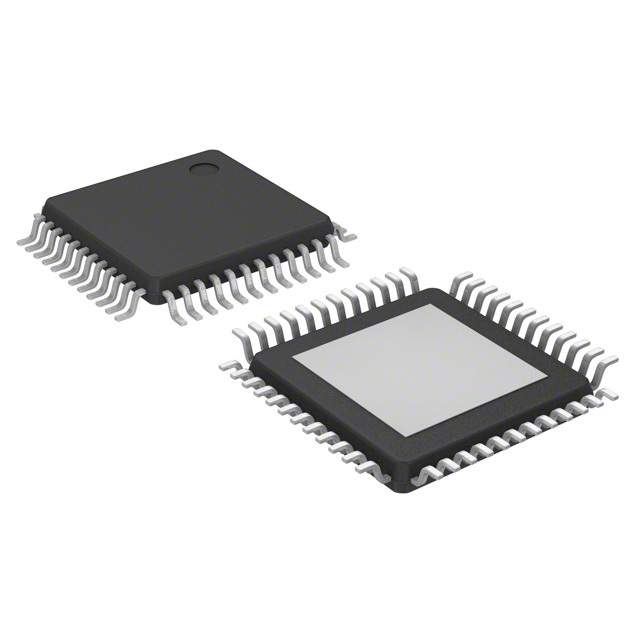

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (8)
Interface : PWM
Technology : DMOS
Step Resolution : 1, 1/2, 1/4
Applications : General Purpose
Current - Output : 1.6A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-LQFP Exposed Pad
Supplier Device Package : 48-LQFP
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (8)
Interface : PWM
Technology : DMOS
Step Resolution : 1, 1/2, 1/4
Applications : General Purpose
Current - Output : 1.6A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-LQFP Exposed Pad
Supplier Device Package : 48-LQFP
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : DMOS
Step Resolution : -
Applications : General Purpose
Current - Output : 3.2A
Voltage - Supply : 8 V ~ 40 V
Voltage - Load : 8 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN-EP (6x6)
0
16708 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : DC DC Regulator
Topology : Step-Down (Buck)
Internal Switch(s) : -
Number of Outputs : 1
Voltage - Supply (Min) : 9V
Voltage - Supply (Max) : 46V
Voltage - Output : -
Current - Output / Channel : 3A
Frequency : 2MHz
Dimming : PWM
Applications : -
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 16-WQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)
0
100 in stock
