Advanced Linear Devices, Inc.

- Advanced Linear Devices, Inc., (ALD) develops and manufactures ultra-low-power, precision CMOS analog integrated circuits, related board level products and Energy Harvesting Modules and accessories incorporating the company's exclusive EPAD® technology. ALD's standard semiconductor products include a full complement of "best-of-breed" ultra-low-charge-injection low-voltage analog switches, dual-slope A/D converters and digital processors, precision voltage comparators, precision rail-to-rail CMOS operational amplifiers, and low-drift CMOS timers with high discharge output, as well as an extensive selection of enhancement, depletion, and zero-threshold mode EPAD matched small signal MOSFET arrays.

Part Number
Manufacturer
Description
Unit Price
In Stock

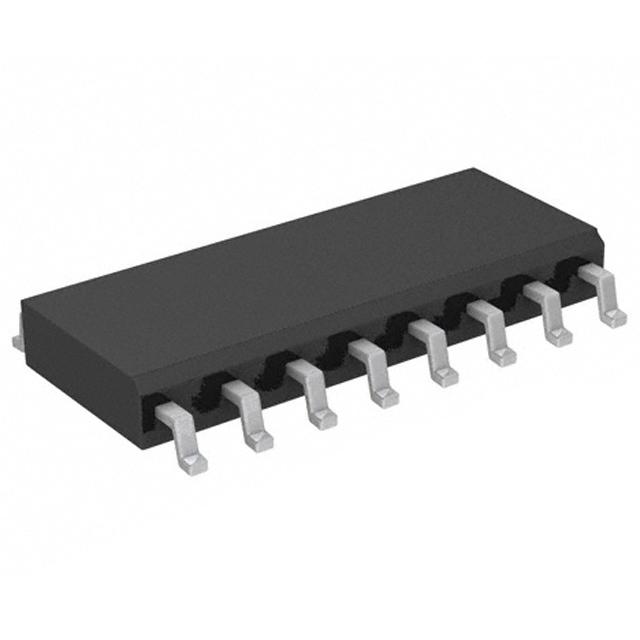

ALD4213SCL ALD4213SCL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 135 Ohm
Channel-to-Channel Matching (δRon) : 2.7 Ohm
Voltage - Supply, Single (V+) : 3 V ~ 12 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 130ns, 130ns
-3db Bandwidth : -
Charge Injection : 0.2pC
Channel Capacitance (CS(off), CD(off)) : 3pF, 3pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
1835 in stock

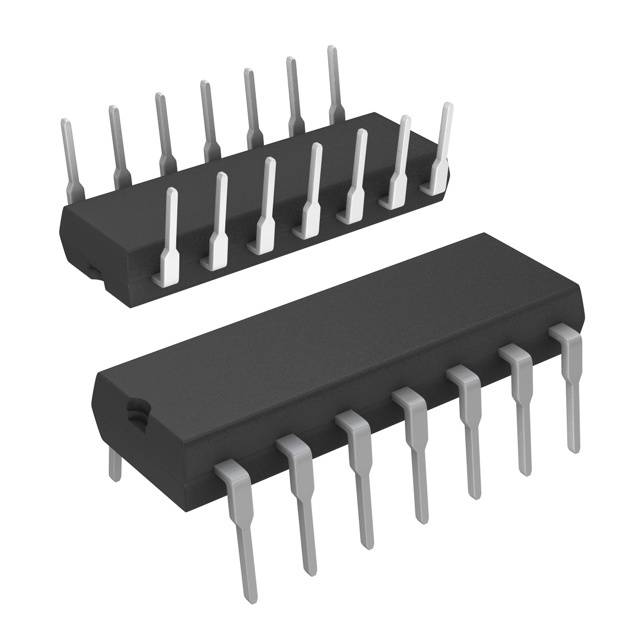

ALD4301APBL ALD4301APBL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : General Purpose
Number of Elements : 4
Output Type : CMOS, NMOS, Open-Drain, TTL
Voltage - Supply, Single/Dual (±) : 3 V ~ 10 V, ±1.5 V ~ 5 V
Voltage - Input Offset (Max) : 5mV @ 5V
Current - Input Bias (Max) : 30pA @ 5V
Current - Output (Typ) : 60mA @ 5V
Current - Quiescent (Max) : 350µA
CMRR, PSRR (Typ) : -
Propagation Delay (Max) : -
Hysteresis : -
Operating Temperature : 0°C ~ 70°C
Package / Case : 14-DIP (0.300", 7.62mm)
Mounting Type : Through Hole
Supplier Device Package : 14-PDIP
0
100 in stock

ALD4301ASBL ALD4301ASBL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : General Purpose
Number of Elements : 4
Output Type : CMOS, NMOS, Open-Drain, TTL
Voltage - Supply, Single/Dual (±) : 3 V ~ 10 V, ±1.5 V ~ 5 V
Voltage - Input Offset (Max) : 5mV @ 5V
Current - Input Bias (Max) : 30pA @ 5V
Current - Output (Typ) : 60mA @ 5V
Current - Quiescent (Max) : 350µA
CMRR, PSRR (Typ) : -
Propagation Delay (Max) : -
Hysteresis : -
Operating Temperature : 0°C ~ 70°C
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
0
100 in stock

ALD4301PBL ALD4301PBL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : General Purpose
Number of Elements : 4
Output Type : CMOS, NMOS, Open-Drain, TTL
Voltage - Supply, Single/Dual (±) : 3 V ~ 10 V, ±1.5 V ~ 5 V
Voltage - Input Offset (Max) : 10mV @ 5V
Current - Input Bias (Max) : 30pA @ 5V
Current - Output (Typ) : 60mA @ 5V
Current - Quiescent (Max) : 350µA
CMRR, PSRR (Typ) : -
Propagation Delay (Max) : -
Hysteresis : -
Operating Temperature : 0°C ~ 70°C
Package / Case : 14-DIP (0.300", 7.62mm)
Mounting Type : Through Hole
Supplier Device Package : 14-PDIP
0
100 in stock

ALD4303ASBL ALD4303ASBL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : General Purpose
Number of Elements : 4
Output Type : CMOS, NMOS, Open-Drain, TTL
Voltage - Supply, Single/Dual (±) : 3 V ~ 10 V, ±1.5 V ~ 5 V
Voltage - Input Offset (Max) : 5mV @ 5V
Current - Input Bias (Max) : 30pA @ 5V
Current - Output (Typ) : 60mA @ 5V
Current - Quiescent (Max) : 90µA
CMRR, PSRR (Typ) : -
Propagation Delay (Max) : -
Hysteresis : -
Operating Temperature : 0°C ~ 70°C
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
0
100 in stock

ALD4501PEL ALD4501PEL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : 555 Type, Timer/Oscillator (Quad)
Count : -
Frequency : 2MHz
Voltage - Supply : 2 V ~ 12 V
Current - Supply : 150µA
Operating Temperature : 0°C ~ 70°C
Package / Case : 20-DIP (0.300", 7.62mm)
Supplier Device Package : 20-PDIP
Mounting Type : Through Hole
0
34 in stock

ALD4501SEL ALD4501SEL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : 555 Type, Timer/Oscillator (Quad)
Count : -
Frequency : 2MHz
Voltage - Supply : 2 V ~ 12 V
Current - Supply : 150µA
Operating Temperature : 0°C ~ 70°C
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
Mounting Type : Surface Mount
0
170 in stock

ALD4702APBL ALD4702APBL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 4
Output Type : Push-Pull, Rail-to-Rail
Slew Rate : 2.8 V/µs
Gain Bandwidth Product : 1.7MHz
-3db Bandwidth : -
Current - Input Bias : 1pA
Voltage - Input Offset : 1mV
Current - Supply : 4mA
Current - Output / Channel : 8mA
Voltage - Supply, Single/Dual (±) : 4 V ~ 12 V, ±2 V ~ 6 V
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Package / Case : 14-DIP (0.300", 7.62mm)
Supplier Device Package : 14-PDIP
0
100 in stock

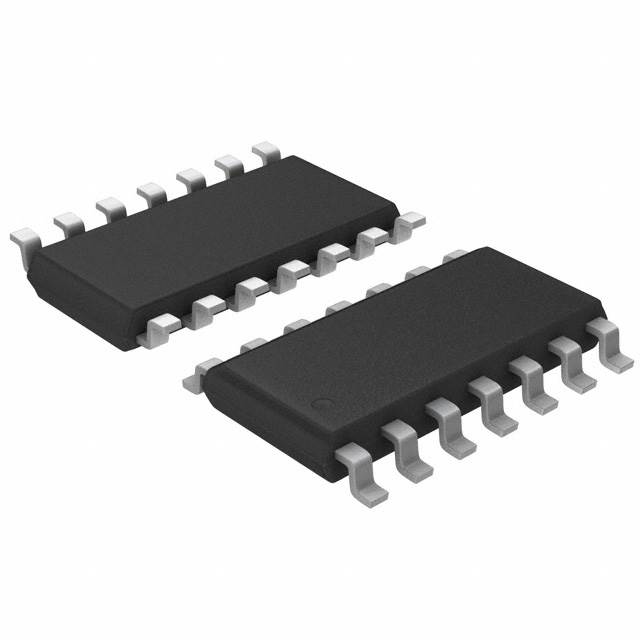

ALD4706SBL ALD4706SBL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 4
Output Type : Rail-to-Rail
Slew Rate : 0.17 V/µs
Gain Bandwidth Product : 200kHz
-3db Bandwidth : -
Current - Input Bias : 0.1pA
Voltage - Input Offset : 10mV
Current - Supply : 120µA
Current - Output / Channel : 200µA
Voltage - Supply, Single/Dual (±) : 2 V ~ 12 V, ±1 V ~ 6 V
Operating Temperature : 0°C ~ 70°C
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
0
100 in stock

ALD500SWCL ALD500SWCL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 16
Sampling Rate (Per Second) : -
Number of Inputs : 1
Input Type : Differential
Data Interface : -
Configuration : ADC
Ratio - S/H:ADC : -
Number of A/D Converters : 1
Architecture : SAR
Reference Type : External
Voltage - Supply, Analog : ±5V
Voltage - Supply, Digital : ±5V
Features : -
Operating Temperature : 0°C ~ 70°C
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
100 in stock

ALD555PAL ALD555PAL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : 555 Type, Timer/Oscillator (Single)
Count : -
Frequency : 2MHz
Voltage - Supply : 2 V ~ 12 V
Current - Supply : 100µA
Operating Temperature : 0°C ~ 70°C
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-PDIP
Mounting Type : Through Hole
0
434 in stock

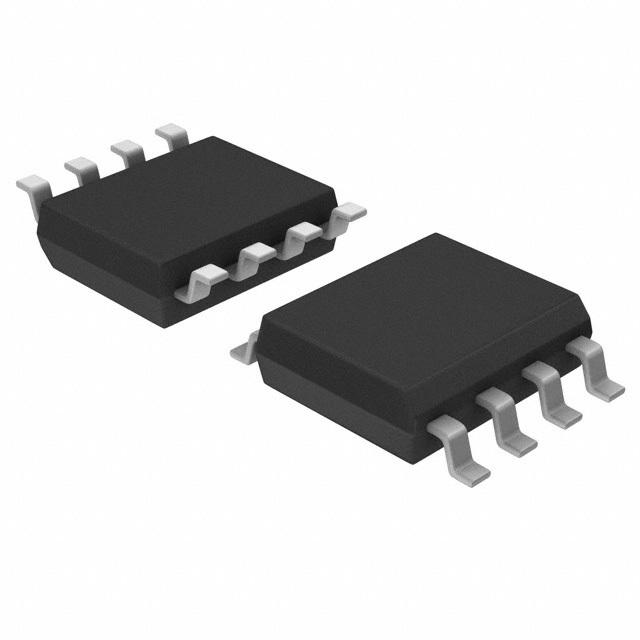

ALD555SAL ALD555SAL

Advanced Linear Devices, Inc.
Manufacturer : Advanced Linear Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Type : 555 Type, Timer/Oscillator (Single)
Count : -
Frequency : 2MHz
Voltage - Supply : 2 V ~ 12 V
Current - Supply : 100µA
Operating Temperature : 0°C ~ 70°C
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Mounting Type : Surface Mount
0
202 in stock
